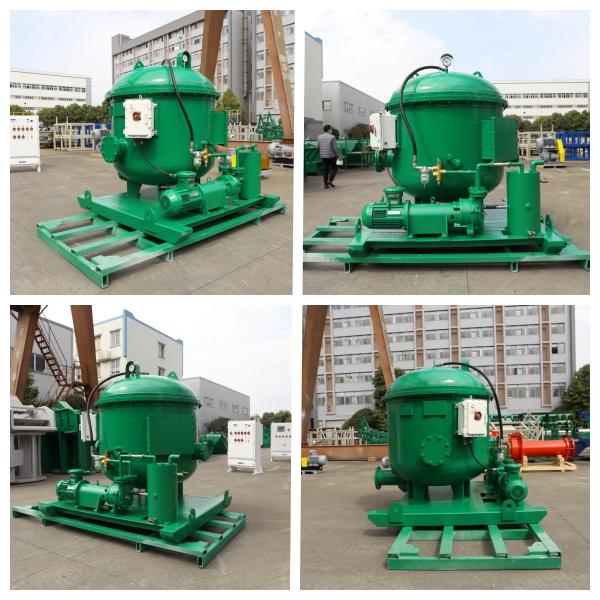

Vertical Vacuum Degasser Vacuum Degasser Steel For Drilling Mud Gas Removal

Name: Vertical Vacuum Degasser Vacuum Degasser Steel For Drilling Mud Gas Removal
Brand: XBSY
Price: 1 USD

China Vertical Vacuum Degasser Vacuum Degasser Steel For Drilling Mud Gas Removal factory

Place of Origin : Sichuan，China

Brand Name : XBSY

Certification : USE 18000,USE14000，EAC，CE，ISO9000

MOQ : 1

Packaging Details : Ply Wood Box,iron box

Delivery Time : 1-2 months

Payment Terms : TT

Supply Ability : 1000

Price : Price Negotiable

Model : ZSCQ / 120

Capacity (m³/h) : 120

Separation Area (c㎡) : 27720

Vacuum Level (MPa) : 0.02 ~ 0.04

Separation Efficiency (%) : ≥85

L × W × H (mm) : 2163 × 1138 × 1512

Weight (kg) : 950

Contact Now

Vertical Vacuum Degasser - Space-Saving Design for Drilling Mud Gas Removal

Engineered for high-risk drilling environments, the ZSCQ/120 utilizes a vacuum pump (2880rpm, 3kW) to create negative pressure, fracturing gas bubbles in mud. Its optimized separation chamber maximizes contact time for 85%+ efficiency. The system operates isothermally, preventing ignition hazards with flammable gases. Compatible with ZJ20-ZJ90 rigs, it requires minimal maintenance and doubles as a heavy-duty agitator when gas intrusion is absent.

Vertical Vacuum Degasser Vacuum Degasser Steel For Drilling Mud Gas Removal

Features
High suction efficiency - Water ring vacuum pump is used.
High separation efficiency - Adopting a multi-layer folded parachute separator - Large separation area, high gas separation efficiency.
Automatic control - Stainless steel floating ball is used to adjust the vacuum level automatically.
High treatment capacity - High efficiency jet discharge is used.
Easy maintenance - Designed with wide access ports.

Model	ZSCQ / 120
Capacity (m³/h)	120
Separation Area (c㎡)	27720
Vacuum Level (MPa)	0.02 ~ 0.04
Separation Efficiency (%)	≥85
L × W × H (mm)	2163 × 1138 × 1512
Weight (kg)	950
Matching Centrifugal Pumps
Flow (m3 /h)	150
Lift (m)	22 ~ 30
Rotational Speed (rpm)	1470
Mating Power (kW)	22 ~ 30
Vacuum Pumps
Rotational Speed (rpm)	2880
Mating Power (kW)	3
